Prolights

Smart BatWashPack

Name: Smart BatWashPack
Brand: Prolights
SKU: SMARTBATWASHPACK
Availability: InStock

(: numëro komentet)

15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power

0.00€

(Including VAT 20%)

SKU: SMARTBATWASHPACK

Kategoria: Battery Operated

Etiketë: Lighting, prolights, audio visual store, strobes, pixels, blinders

30 days easy returns
Order yours before 2.30pm for same day dispatch

Guaranteed safe & secure checkout

The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.
This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.
The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.

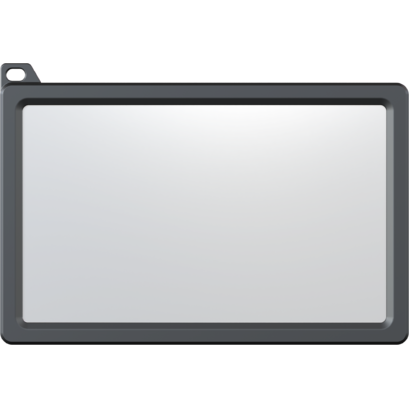

The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.

The pack includes:

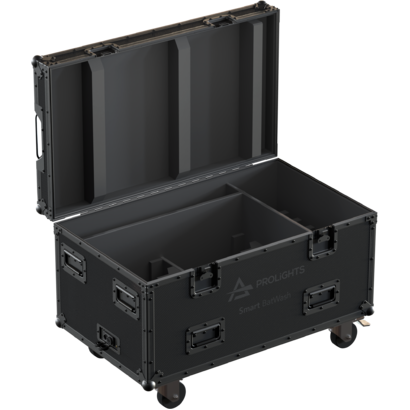

1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
4 x SMARTBATWASH with 25° magnetics filter on-board

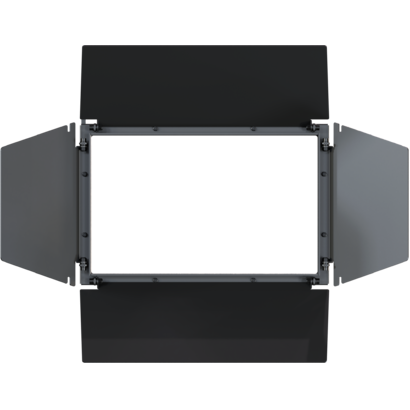

4 x barndoors (SBWBD)
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
4 x 0,25 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
4 x omega clamp (OS25)
1 x User Manual

Main Features

High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
Range of holographic filters that modify the shape of the beam angle

Important Links

Smartbatwashpack_LETTER_DATASHEET_(EN) Smartbatwashpack_A4_DATASHEET_(EN)

LIGHT SOURCE

Source: 15x20W RGB + Warm White LED
Luminous flux: 6'300 lm @full
Lux: 4'451lx @5 m full
CRI: > 95 @3200K ; > 93 @5600K
R9: > 98 @3200K ; > 93 @5600K
TLCI: > 84 @5600K
TM30 Rf: 94.2 @3200K ; > 92 @5600K
TM30 Rg: 104.4 @3200K ; > 105 @5600K
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 10°

COLOUR SYSTEM

Colour mixing: RGBWW
CCT: CCT control through dedicated DMX channel
White presets: 2'800K - 10'000K
Colour wheel: virtual colour wheel with macros
Macros: built-in white presets

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: RAL 9004

CONTROL

Protocols: CRMX+W-DMX, DMX512, RDM
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45° Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 180W
Output (at 230V): (Data for SMARTBATWASHPACK) 2 units on a single power line
Output (at 120V): (Data for SMARTBATWASHPACK) 1 units on a single power line
Power factor: >0,94

BATTERY

Battery: 16,8V lithium
Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
Re-charge connection: Directly from the mains power or magnetic fast-charge in case
Re-charge time: 5h/max
Battery status: shown on display
Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: passive cooling and fan-free
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Power connection: magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
Dimensions (WxHxD): 381x344x143mm / 15''x13.54''x5.63''
Weight: 9,8kg / 21.61lbs

CERTIFICATIONS / APPROVALS
