Prolights

Smart BatPlusG2

Name: Smart BatPlusG2
Brand: Prolights
SKU: SMARTBATPLUSG2
Price: 1296 EUR
Availability: InStock

(: numëro komentet)

4x20W hybrid battery uplighter/spot, IP65, with RGB + Warm White LED source, wireless or wired

1,296.00€

(Including VAT 20%)

SKU: SMARTBATPLUSG2

Kategoria: Battery Operated

Etiketë: Lighting, prolights, audio visual store, strobes, pixels, blinders

30 days easy returns
Order yours before 2.30pm for same day dispatch

Guaranteed safe & secure checkout

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.
The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.
The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.
The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.
The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

Main Features

Multipurpose design: uplighter/spotlight, customisable coloured covers
Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power
4x20W RGB + Warm White calibrated LED source with high CRI (>93)
Interchangeable battery and magnetic holographic filters for multiple beam angles

Important Links

Smartbatplusg2_LETTER_DATASHEET_(EN) Smartbatplusg2_A4_DATASHEET_(EN) Smartbatplusg2_TENDER_SPECIFICATION

LIGHT SOURCE

Source: 4x20W RGB + Warm White LED
Luminous flux: 2'051 @Full
Lux: 1'723lx @5 m without filter
CRI: 94 @3.200 K; 92 @5.600 K
R9: 96 @3.200 K; 96 @5.600 K
TLCI: 92 @5.600 K
TM30 Rf: 93 @3.200 K; 91 @5.600 K
TM30 Rg: 105 @3.200 K; 106 @5.600 K
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 10°
Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°

COLOUR SYSTEM

Colour mixing: RGBWW
CCT: CCT control through dedicated DMX channel
White presets: 2'800K - 10'000K
Colour wheel: virtual colour wheel with macros
Macros: built-in white presets

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: RAL 9004
Other: Quick release foot to achieve 20° adjustable tilt

CONTROL

Protocols: CRMX+W-DMX, DMX512, RDM
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45° Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: (with mains) 80W
Power factor: >0,98

BATTERY

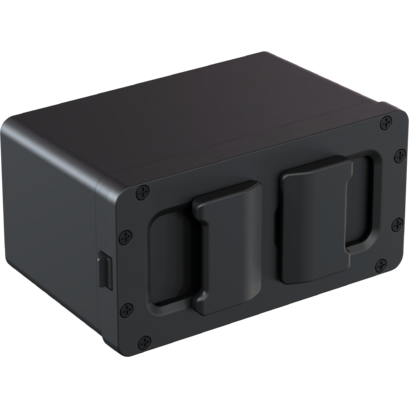

Battery: removible 21,6V lithium
Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
Re-charge connection: Battery Pack fast-charge in Case
Re-charge time: 4h/max
Battery status: shown on display
Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector

PHYSICAL
