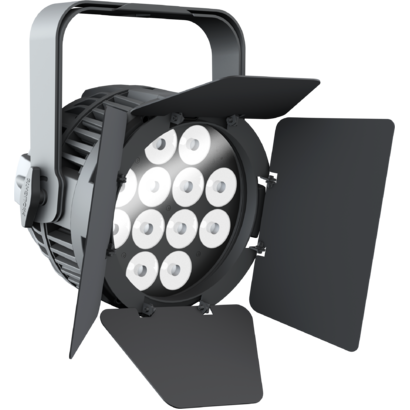

LumiPar 12IP

LIGHT SOURCE

• Source: 12x9W RGBW LEDs
• Luminous flux: (25°) 3'900 lm - (45°) 6'700
• Lux: (25°) 2'535lx @3 m full
• Lux: (45°) 1'154lx @3 m full
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: available in 25° or 45°
• Field angle: 36° or 60°

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• White presets: 3.000 K ~ 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: built-in white presets

DYNAMIC EFFECTS

• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Protocols: DMX512
• DMX channels: 4 / 6 / 11channel
• Display: black OLED touch display
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 0 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° ~ +45° Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 110W
• Max power consumption (at 120V): 110W
• Output (at 230V): 33 units on a single power line
• Output (at 120V): 18 units on a single power line

PHYSICAL

• IP rating: 65 for temporary outdoor application, not for fixed installations
• IK rating: 07
• Cooling: passive cooling and fan-free
• Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 305x326x177mm / 12.01''x12.83''x6.97''
• Weight: 6,2kg / 13.67lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT/strong>

• 1 x LUMIPAR12IP
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
