PIXPAN16 is a LED matrix consisting of 16x30 W RGB / FC COB LEDs, conceived to revolutionize the concept of pixel-control applied to lighting by LED sources.
The special optics reflectors in combination with 30 W COB (chip-on-board) LEDs give PIXPAN16 an unprecedented light output capable of impressing and dazzling the audience. Mechanical components of PIXPAN16 consist of locks and coupling inserts, allowing a highly versatile use in suspension on truss, stacked on the floor or in low-res LED wall composition.
LIGHT SOURCE
OPTICS
COLOUR SYSTEM
DYNAMIC EFFECTS
BODY
CONTROL
ELECTRONICS
ELECTRICAL
PHYSICAL
CERTIFICATIONS/APPROVALS
BOX CONTENT

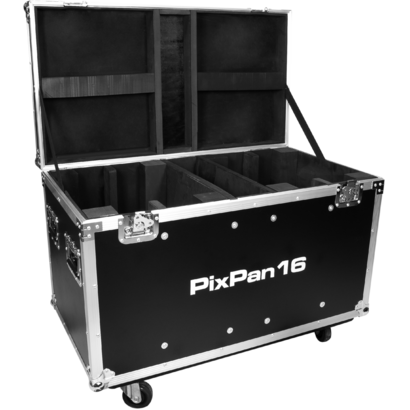

Flight case for 4 PIXPAN16, 950x570x515 mm, 37 kg
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

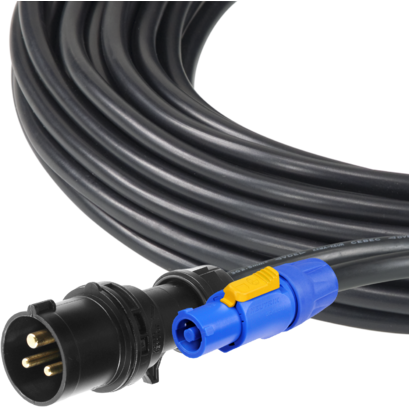

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

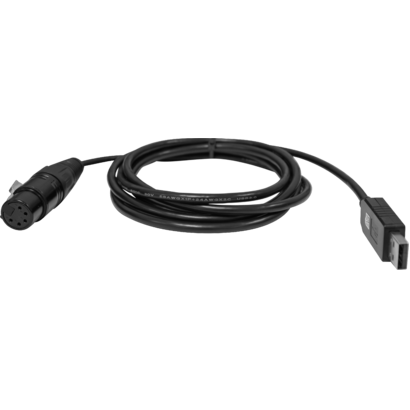

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
