Prolights

OmegaPix 26B

Name: OmegaPix 26B
Brand: Prolights
SKU: OMEGAX26B
Price: 1610.4 EUR
Availability: InStock

2,6 mm pixel pitch indoor rental LED screen

OmegaPix 26B is a revolutionary indoor 2,6 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and superior video image quality.

1,610.40€

(Including VAT 20%)

SKU: OMEGAX26B

Category: Video, Indoor LED Screens

Tag: prolights, audio visual store, video, INDOOR LED SCREENS

Mechanical / assembly features:

Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
Front service of magnetic replacement of the LED module for immediate service
Climbable, designed for a quick maintenance access
Hot swapping of the back panel to replace PSU & electronics
Assisted mounting magnets allowing for a one-man quick setup
Ground stacking accessories available

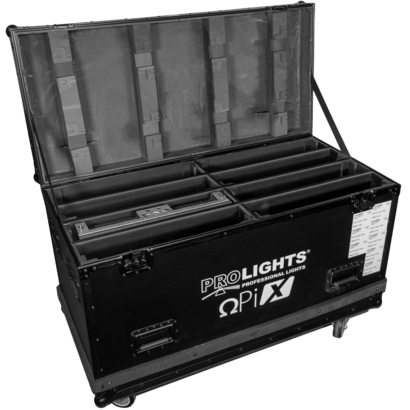

Corner protection for additional safe transport in case
Velcro edged to avoid any gaps
Fly bars are suitable for both hanging or ground stacking application:

Components / electronic features:

Premium Components
Module with memory to store calibration database
Magnetic front and back LED module replacement
Black&White& White mask for superior contrast and rentability
22 bit+ greyscale (4x high than the market average)
Rotation function enabled
New Novastar A8s receiver
IP powerCON IN/OUT
IP dataCoN IN/OUT
CE, EMC, UL approved

Image quality:

New Novastar A8s-N receiving card
22 bit+ greyscale, x4 higher than the market average. Effectively improved greyscale performance under low-brightness, showing more exquisite and expressive images.
Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures.
Rotation enabled: rotation of panels recognised by software @ 360°
RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported

Main Features

2,6 mm pixel pitch indoor rental LED Screen
Seamless 90° angles
Curve configurations, concave and convex
Fly bar hanging/stacking
New Novastar A8s with 22bit+ and image rotation

VIDEO

Driver chip type: MBI 5252
LED source: SMD 2121 full black
Pixel pitch: 2.6mm / 0.1''
Panel resolution: 192x192pixels
Module resolution: 96x96pixels
Luminous flux: 1.000nit
Contrast: 3.000:1
Grayscale: 18 bit
Refresh rate ≥: 3.840Hz
Drive Mode: 1/16 scan, constan current
Vertical viewing angle: 120°
Horizontal viewing angle: 140°
LED density: 147.456LED/sqm
Dead Pixel Ratio: <0,002
LED avg life span: 100.000

ELECTRICAL

Power input/output: IPKON Seetronic IN/OUT
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 160W
Avg power consumption (panel): 40W
Max power consumption (sqm): 640W
Avg power consumption (sqm): 160W
Standby power consumption (pannello): 20W
Max rated current/panel:: AC 220 V / 0.55 A
Working temperature: -10°C / +45°C
Working humidity: 10~80 RH%

CONTROL

Receiving card type: A8S-N
Other controllers type: rotation, 22bit+, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol: Novastar
Signal input: IP data Seetronic IN
Signal output: IP data Seetronic OUT

MECHANICS

Magnetic LED modules: available
Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
Module size (WxH): 250x250mm / 9.84''x9.84''
Panel size(WxHxD): 500×500×90.6mm / 19.69''
Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans
Connection: seamless locking system
Curvability: concave 2°, 5°, 10° - convex 2°, 5°
Body: die-cast aluminium housing
Color: black
IP rating: IP30 (front and rear)
Panel weight: 9kg / 19.84lbs
Weight per square meter: 36kg / 79.37lbs
Hanging Panel Quantity ≤: 20
Compliant Standard: CE, EMC, UL
