EclSoft Tube100Pack

Name: EclSoft Tube100Pack
Brand: Prolights
SKU: ECLST100PACK
Availability: InStock

100 cm, battery-powered soft tube for Film & TV, IP65, with an RGB + Warm White LED source, wireless or wired

REQUEST AN INFORMATION

0.00€

(Including VAT 20%)

SKU: ECLST100PACK

Category: Soft Lighting

Tag: Lighting, prolights, audio visual store, soft lighting

The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.

The pack includes:
1 x ABS case
8 x ECLSOFTTUBE100

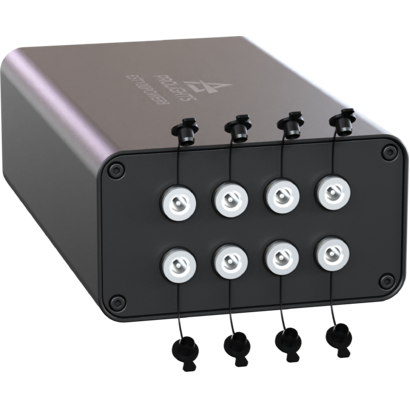

1 x 8-way charger (EST100POWER8)

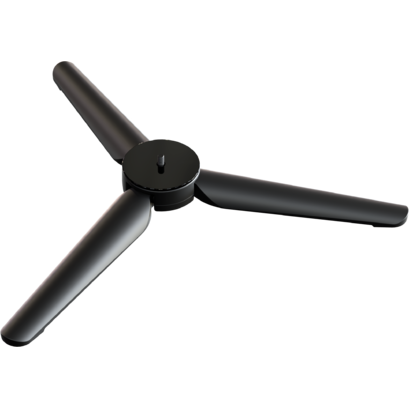

8 x tripods (EST100FY)

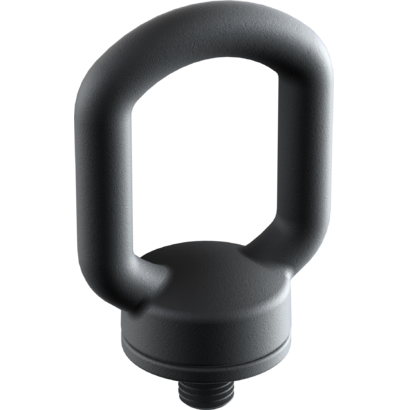

16 x eyebolts (EST100EB)

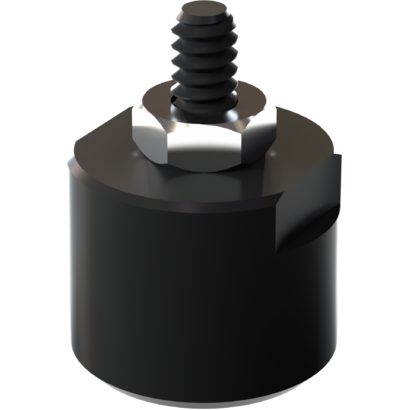

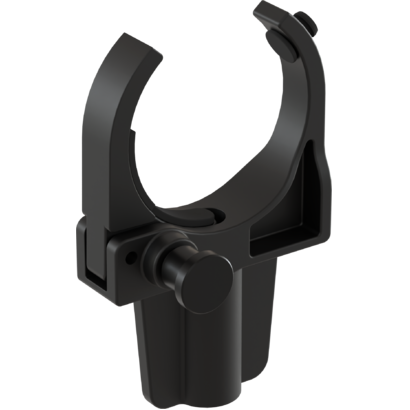

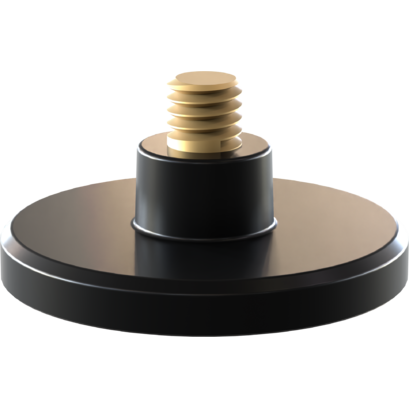

16 x clamps with magnets (EST100OSPLUS with ENPTWCMAG)

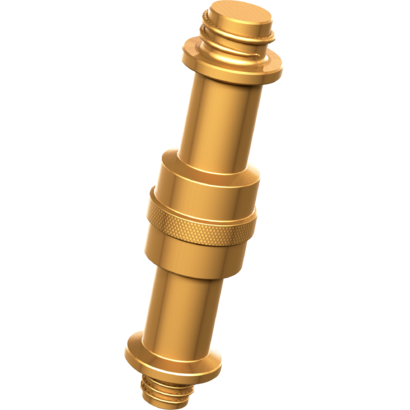

16 x baby pins (EST100BP)

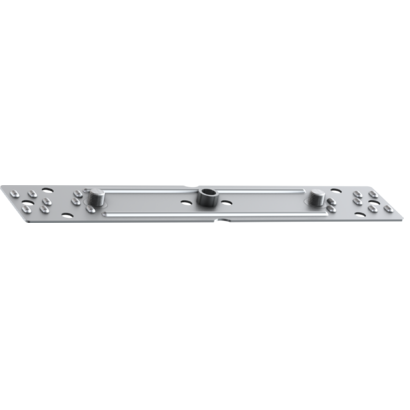

8 x wingplate (EST100WP)

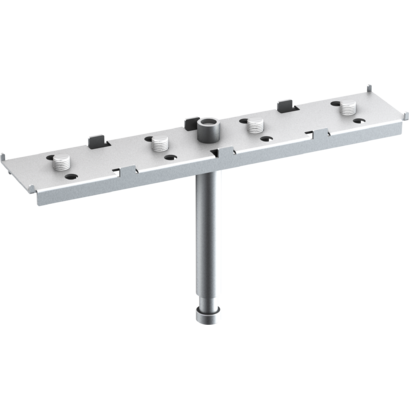

2 x crossplate (EST100CP)
1 x User Manual

Main Features

Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
IP65 for outdoor applications

Important Links

Eclst100pack_A4_DATASHEET_(EN)

LIGHT SOURCE

Source: 48W RGB + Warm White
Luminous flux: 2'386 @Full
Lux: 71lx @3 m
Lux: 161lx @2 m
CRI: 93
R9: 92
TLCI: 91
TM30 Rf: 91
TM30 Rg: 105
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 128°
Field angle: 199°
Lens type: frosted acrylic tube

COLOUR SYSTEM

Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
Colour mixing: RGB + Warm White
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K - 10.000K with 28 K resolution
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
FX generator: 16 sections with adjustable foreground/background colour, index, speed, direction
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: black

CONTROL

Protocols: Art-Net, Kling-Net, sACN, CRMX+W-DMX
DMX channels: main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface

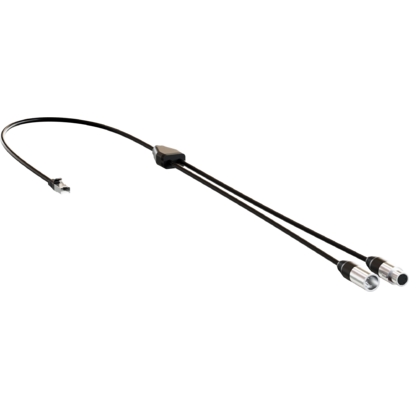

Firmware upgrade: via DMX with UPBOX1+EST100UPBOXI (USB-DMX interface not included)

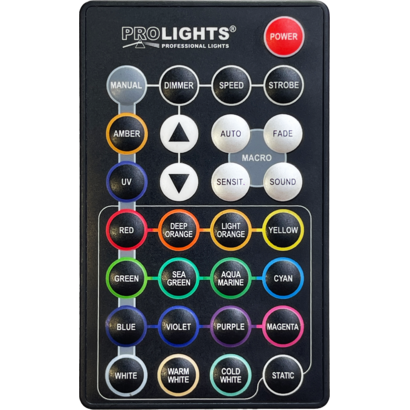

IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 3.000 / 6.000 /12.000 / 24.000 Hz

ELECTRICAL

Max power consumption: 55 W
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: 24V
Power factor: >0,96

BATTERY

Battery: 24V lithium
Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
Re-charge connection: DC with jack and AC with standard powercon connector
Re-charge time: 5h/max
Battery status: shown on display
Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through external charger

PHYSICAL

IP rating: IP65 for temporary outdoor application, not for fixed installations
Cooling: passive cooling and fan-free
Suspension and fixing: M5 threaded insert for eye bolt, floor stand and clamp for wall installation
Data connection: Seetronic RJ45 IP65 IN
Power connection: DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
Dimensions (WxHxD): 1163x50x50mm / 45.79''x1.97''x1.97''
Weight: ()49,4kg / 0lbs

CERTIFICATIONS / APPROVALS
