230W Tunable White and colourful LED soft light with pixels and lighting effects
The EclPanel TWCJR4x1 is a compact LED linear soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCJR4x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.
The EclPanel TWCJR4x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
The 2 sections are controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCJR4x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48VDC)
LIGHT SOURCE
OPTICS
COLOUR SYSTEM
DYNAMIC EFFECTS
BODY
CONTROL
ELECTRONICS
ELECTRICAL
PHYSICAL
CERTIFICATIONS / APPROVALS
BOX CONTENT

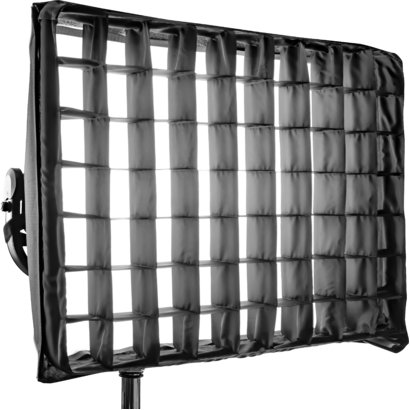

40° SnapGrid for SnapBag, 4x1 for ECLPANELTWCJR4x1 by DoP choice

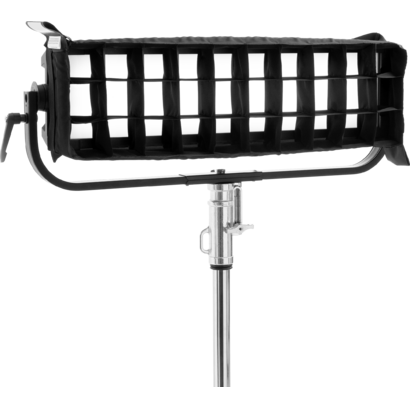

40° SnapGrid, 4x1 for ECLPANELTWCJR4x1 by DoP choice

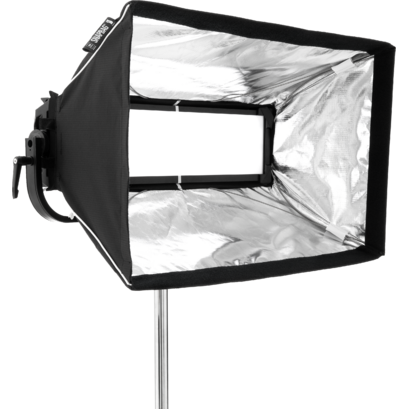

SnapBag 4x1 for ECLPANELTWCJR4x1 by DoP choice

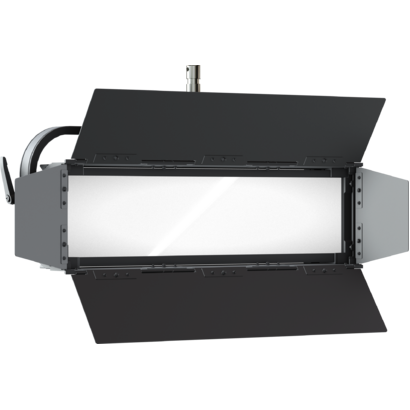

Barndoor for ECLPANELTWCJR4X1 with 4 directional flaps to adjust

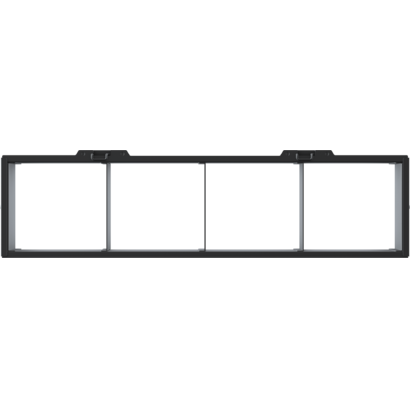

4 chamber egg crate for ECLPANELTWCJR4X1
60 degree egg crate for ECLPANELTWCJR4X1

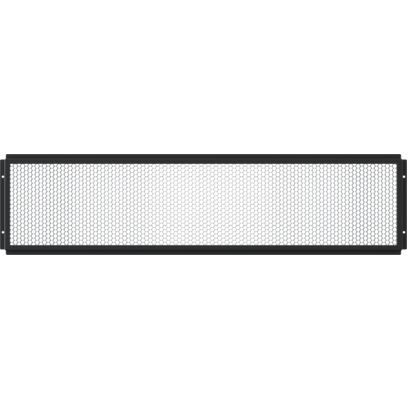

30 degree egg crate for ECLPANELTWCJR4X1
Front low diffusion filter (more output) for ECLPANELTWCJR4X1
Front medium diffusion filter for ECLPANELTWCJR4X1

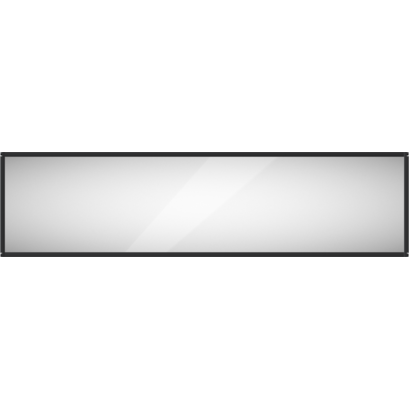

Front intensified diffusion filter for ECLPANELTWCJR4X1
Front high diffusion filter (less output) for ECLPANELTWCJR4X1

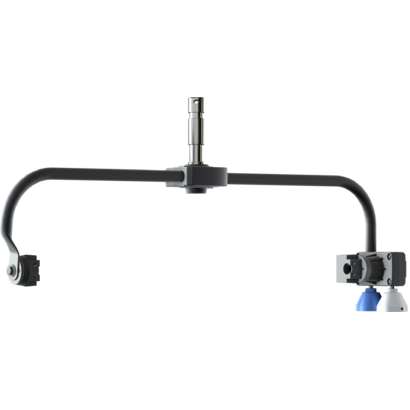

Pole operated aluminium yoke bracket for ECLPANELTWCJR4X1
Ball head joint for center mount bracket EPTWCBRK series

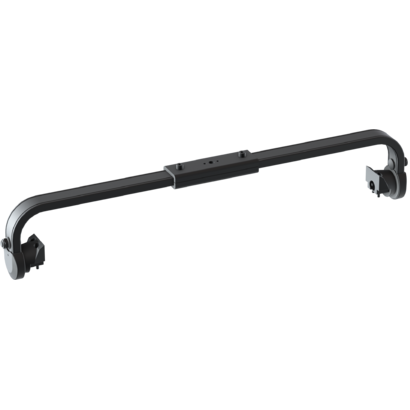

Center mount bracket for ECLPANELTWC and ECLPANELTWCJR4X1

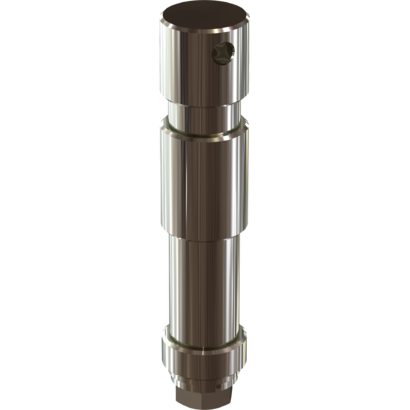

28mm spigot for fixtures, M12 bolt
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

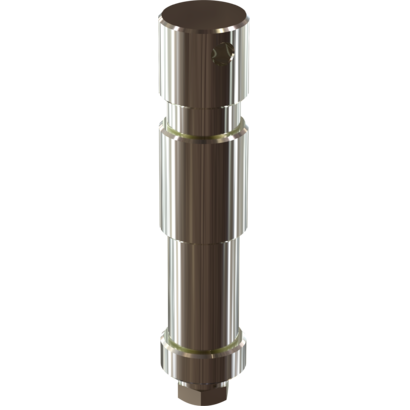

28mm spigot for fixtures, M10 bolt
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
Single Universe DMX transceiver with Bluetooth
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt
