1x1 Hard Source LED Panel, IP65 with 300W power and 6 colors source

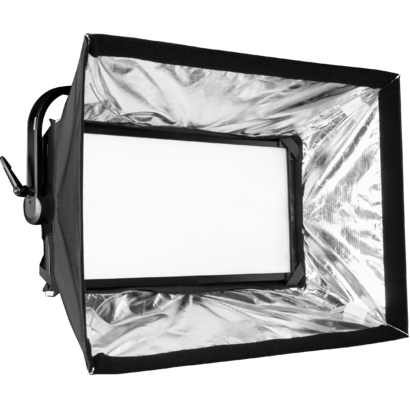

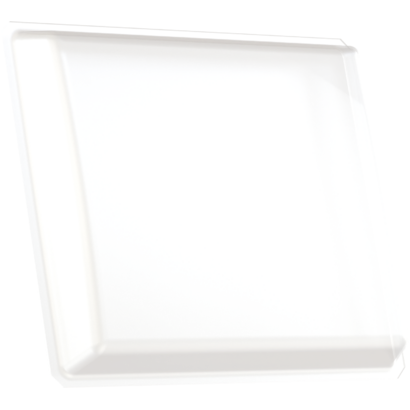

The EclPanel IPHard1x1 is a 1x1 format IP65 Hard Light, featuring an LED source optimized for long throw film applications. This unit is designed to deliver quality lighting in all weather conditions. Its optical system, equipped with a 6-color LED array and collimator lenses controllable in 4 sections, producing a 20° native beam angle. This configuration enhances lux intensity for long throw uses and broadens the light spectrum, resulting in superior light quality. The EclPanel IPHard can be transformed into a soft light source by attaching optical modifiers to its accessory points.
Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.
Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.
LIGHT SOURCE
OPTICS
COLOUR SYSTEM
DYNAMIC EFFECTS
BODY
CONTROL
ELECTRONICS
ELECTRICAL
PHYSICAL
CERTIFICATIONS / APPROVALS
BOX CONTENT
