Prolights

DisplayCob FC

Name: DisplayCob FC
Brand: Prolights
SKU: DisplayCobFC
Price: 348 EUR
Availability: InStock

60W compact full colour COB PAR with parabolic reflector

348.00€

(Including VAT 20%)

SKU: DisplayCobFC

Category: New Arrivals, Indoor Fixtures

Tag: Lights, prolights, indoor fixtures

DisplayCob FC is the compact version of the popular StudioCob FC - perfect for an installation or indoor venues. DisplayCob FC uses a 60 W COB LED source RGB / FC, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output and interchangeable lens system to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

1200x1200DISPLAYCOBFC_27871

Main features

Compact LED Par with 60W full colour COB source
HD dimming and an extensive, even colour palette
Flexible lens options of 15° - 30° - 60° and functional barn doors

Important Links

Displaycobfc_A4_DATASHEET_(EN)
Displaycobfc_A4_DATASHEET_(IT)

LIGHT SOURCE

Source: 60W COB RGB / FC LED
Luminous flux: 1'726
Lux: (60°) 223lx @3 m full
Lux: (30°) 573lx @3 m full
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle: 60°
Field angle: 80°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)

COLOUR SYSTEM

Colour mixing: RGB / FC
White presets: 3.200 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: built-in white presets

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 3 / 5 / 8channel
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 75W
Max power consumption (at 120V): 70W
Output (at 230V): 24 units on a single power line

PHYSICAL

IP rating: 20
Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 5p IN/OUT connectors
Power connection: moulded IP power IN connector
Dimensions (WxHxD): 166x118x250mm / 6.54''x4.65''x9.84''
Weight: 1,85kg / 4.08lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x DISPLAYCOBFC
User Manual

410 (2)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

410 (3)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt

UPBOXPRO
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DISPLAYCOBL30
Optics for DISPLAYCOB projectors series, 30°

DISPLAYCOBL15
Optics for DISPLAYCOB projectors series, 15°

DISPLAYCOBBDBK
Barn door with 4 directional flaps to adjust the light beam, for DISPLAYCOB, BK

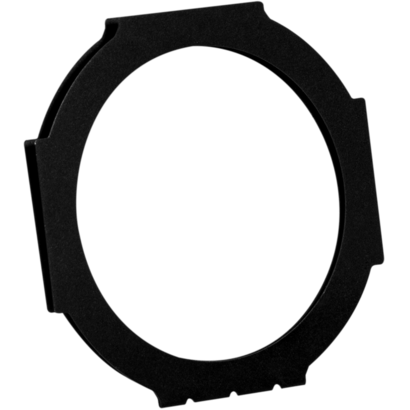

DISPLAYCOBTPGBK
Filter frame for DISPLAYCOB projectors, black
