IP65 hybrid moving head, with 260W white phosphor Laser source and zoom 0.6° - 52°
The Astra Hybrid260IP is an advanced hybrid moving luminaire equipped with a powerful 260W Phosphor Laser source, designed to excel in both indoor and outdoor environments thanks to its IP65-rated construction.
A groundbreaking 165 mm front lens channels its laser energy into a sharply focused 0.6° beam, achieving an extraordinary 420,000 lux at 20 meters - far exceeding the output of traditional discharge 480W hybrids. With a 100× zoom range spanning from 0.6° to 52°, this fixture delivers everything from tight aerial beams to expansive stage spot, offering unmatched versatility for any show or event.
Beyond its formidable beam and zoom capabilities, the Astra Hybrid260IP boasts infinite Pan and Tilt rotation for fluid, dynamic movement effects and a comprehensive color system that includes linear CMY and CTO mixing plus 27 color filters on dedicated wheels. Add 12 rotating gobos, 29 static gobos, 8 prisms on overlapping wheels, and two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless - whether illuminating mid-air or crafting intricate projected textures.
Despite its powerful performance and extensive feature set, the fixture remains surprisingly lightweight at just 34 kg, thanks to its durable magnesium alloy housing, while pull-out handles integrated into the arm simplify handling and rigging. This rugged design thrives in the challenging conditions of large arenas, outdoor festivals, touring stages, and permanent installations alike, positioning the Astra Hybrid260IP as a true all-weather champion that professional rental houses and production teams can rely on for robust, high-impact lighting solutions.
Astrahyb260ip_A4_DATASHEET Astrahyb260ip_TENDER_SPECIFICATION
LIGHT SOURCE
OPTICS
COLOUR SYSTEM
DYNAMIC EFFECTS
BODY
CONTROL
ELECTRONICS
ELECTRICAL
PHYSICAL
CERTIFICATIONS / APPROVALS
BOX CONTENT

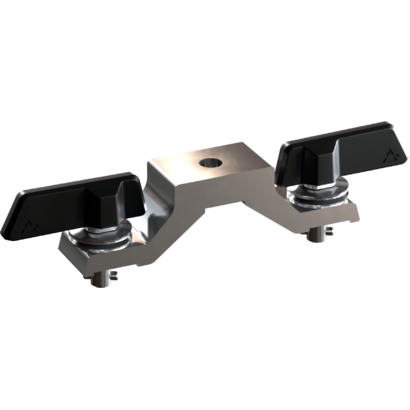

IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

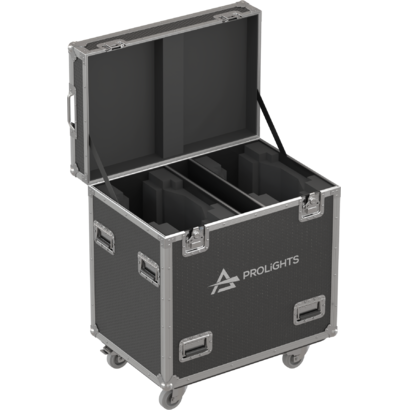

Flight case for 2 pcs of ASTRAHYB260IP
Flight case per contenere 2 pc ASTRAHYB260IP, top load version
Single Universe DMX transceiver with Bluetooth
