Prolights

ArcShine S9FC

Name: ArcShine S9FC
Brand: Prolights
SKU: ARCSHINES9FC
Price: 492 EUR
Availability: InStock

9x2W IP66 RGB + Warm White architectural linear fixture, 50 cm

492.00€

(Including VAT 20%)

SKU: ARCSHINES9FC

Category: Linear

Tag: Lighting, prolights, audio visual store, linear

The ArcShine S18FC and ArcShine S9FC are a series of slim linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.

There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 2W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.

Optic: 15° lenses capable of delivering multiple angles with optional holographic filters.

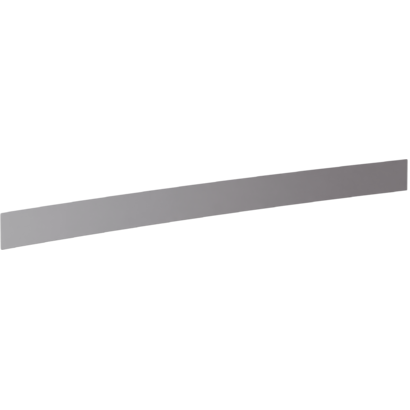

Optional holographic symmetric and elliptical filters available: 20°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

Main Features

IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
RGB + Warm White colour mixing, with 2W LED emitters
Optic: 15° lenses capable of delivering multiple angles with optional holographic filters
Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°

Important Links

Arcshines9FC_A4_DATASHEET_(EN)

LIGHT SOURCE

Source: 9x2W RGBWW LEDs
CCT: 2.700 K - 5.600
Luminous flux: (15°) 655 lm; (15°+20°) 638 lm; (15°+60°) 618 lm; (15°+10°x60°) 744 lm; (15°+30°x60°) 644 @Full
Lux: (15°) 428 lx; (15°+20°) 146 lx; (15°+60°) 51 lx; (15°+10°x60°) 102 lx; (15°+30°x60°) 64lx @3 m full
CRI: >80
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle: 15°
Additional optics: see available accessories

COLOUR SYSTEM

Colour mixing: RGB + Warm White
CCT: CCT control through dedicated DMX channel
Colour wheel: virtual colour wheel with macros
Macros: built-in white presets

BODY

Tilt range: manual 180°
Body: sturdy aluminum profile
Body colour: RAL 7012

CONTROL

Protocols: DMX512, RDM
Stand Alone: available through DATAMASTER external coder (not included)
DMX channels: 1 / 2 / 5 / 9 / 12 / 14channel
RDM: RDM for remote monitoring and settings
Display: user interface through DATAMASTER external coder (not included)
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
Master/Slave: for synchronised operation of more units linked in a chain
Other: 16bit control of dimmer and colour

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1-30 Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 21W
Output (at 230V): 58 units on a single power line
Power factor: >0,95

PHYSICAL

IP rating: 66 for outdoor installations
IK rating: 09
Cooling: fan-free projector with a chassis designed for natural convection cooling
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Adaptors: XLR and BARE END 16A adaptors included
Signal connection: moulded IP signal IN/OUT connectors
Power connection: moulded IP power IN/OUT connectors
Dimensions (WxHxD): 500x150x64.7mm / 19.69''x5.91''x2.55''
Weight: 1,95kg / 4.3lbs

CERTIFICATIONS / APPROVALS
