ArcPod 96Q

LIGHT SOURCE

• Source: 96x10W RGBW / FC LEDs
• Luminous flux: (15°) 46'094 lm - (25°) 41'570 lm - (45°) 33'410 @Full
• Lux: (15°) 61'963 lx - (25°) 25'823 lx - (45°) 5'575lx @3 m full
• Lux: (15°) 22'307 lx - (25°) 9'266 lx - (45°) 2'007lx @5 m full
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Beam angle: (bottom head) 15° - (top head) 10°

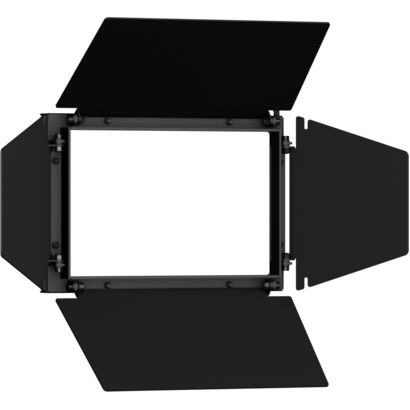

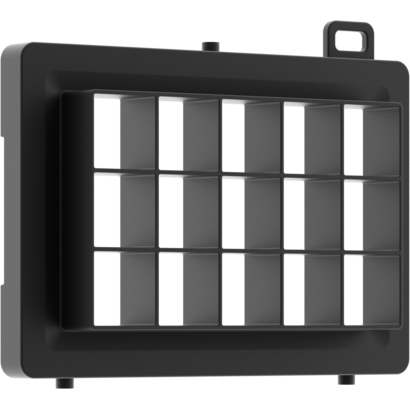

• Additional optics: 25° - 45° (optional) - see available accessories

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control through dedicated DMX channel
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built macros with adjustable speed

DYNAMIC EFFECTS

• FX generator: up to 8 linear controllable sections
• Static mode: selection of static colour

BODY

• Tilt range: 180° with manual regulation
• Body: sturdy die-cast aluminium body
• Body colour: RAL 7012

CONTROL

• Protocols: DMX512, RDM
• DMX channels: 8 / 10 / 14 / 20 / 34 / 44channel
• Pixel control: up to 8 linear controllable sections
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 ~ 30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 1020W
• Output (at 230V): 4 units on a single power line
• Power factor: > 0,96

PHYSICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 1020W
• Output (at 230V): 4 units on a single power line
• Power factor: > 0,96

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ARCPOD96Q
• 1 x 0,17 meters 3G2,5mmq power cable (BARE END - IP connection adapter)
• 1 x 5p XLR - IP connection female adapter
• 1 x 5p XLR - IP connection male adapter
• User Manual
